Steel Material Electrical Control Panel Distribution Cabinets LV 220V 400V 63A IP55 50HZ

The Indoor Low Voltage Control Cabinet is a versatile and robust solution for centralized power distribution and automated control. Fabricated from high-strength cold-rolled steel, this cabinet is designed to house a wide array of electrical components, including MCCBs, MCBs, contactors, and PLC units, making it the ideal "brain" for industrial workshops and commercial buildings.

Operating within a voltage range of 220V to 400V, this distribution cabinet provides a secure, organized environment for branch circuit management. Its modular internal layout supports easy rail mounting and cable routing, ensuring that even complex control systems remain accessible for routine maintenance and troubleshooting.

• High-Strength Steel Construction: Built from 1.2mm to 2.0mm thick cold-rolled steel plates, providing superior mechanical protection and impact resistance (IK10) for internal switchgear.

• Corrosion-Resistant Powder Coating: Finished with an electrostatic epoxy powder coating (Standard RAL 7035), ensuring the cabinet resists scratches, moisture, and indoor pollutants for decades.

• Advanced Safety Sealing: Features a high-quality foam gasket on the door frame to provide an IP40/IP54 ingress protection rating, shielding sensitive electronics from dust and accidental contact.

• Flexible Component Mounting: Equipped with an adjustable internal mounting plate or standard DIN rails, allowing for the integration of multiple brands such as Schneider, ABB, or Siemens.

• Optimized Thermal Design: Available with side ventilation louvers and top-mounted fan cutouts to ensure that high-load components like inverters or large contactors stay within safe operating temperatures.

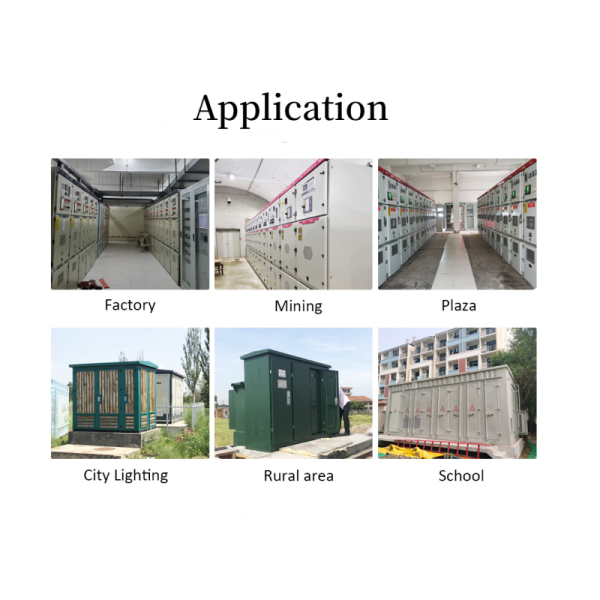

1. Industrial Manufacturing: Localized motor control and power distribution for CNC machines, assembly lines, and conveyor systems.

2. Commercial Real Estate: Managing lighting, elevator power, and HVAC circuits in office buildings, shopping malls, and hotels.

3. HVAC Control Panels: Housing variable frequency drives (VFDs) and starters for large-scale ventilation and cooling fans.

4. Pump Stations: Providing a weather-protected indoor hub for water treatment and secondary pressure-boosting systems.

• Gland Plate Versatility: Features removable top and bottom gland plates for easy drilling on-site, allowing for clean cable entry and exit.

• Earthing Continuity: Every cabinet includes a dedicated copper earth stud on both the door and the main body, ensuring 100% electrical safety and grounding.

• Secure Locking System: Fitted with a robust three-point lock or a standard chrome-plated swing handle to prevent unauthorized access in public or industrial spaces.

• Customization Ready: We provide pre-cut holes for HMIs, push buttons, and indicator lights based on your specific control schematic.

Q: Can this cabinet be used outdoors?

A: This series is designed for indoor use. For outdoor environments, we recommend our specialized stainless steel or outdoor rain-proof series with IP65/IP66 ratings and rain hoods.

Q: Does it come with an internal mounting plate?

A: Yes, each cabinet includes a galvanized internal mounting plate as standard, which provides excellent grounding and a rigid surface for component installation.

Q: Is the door reversible?

A: Most of our wall-mounted models feature a reversible door design, allowing you to change the swing direction from left to right to suit your site layout.

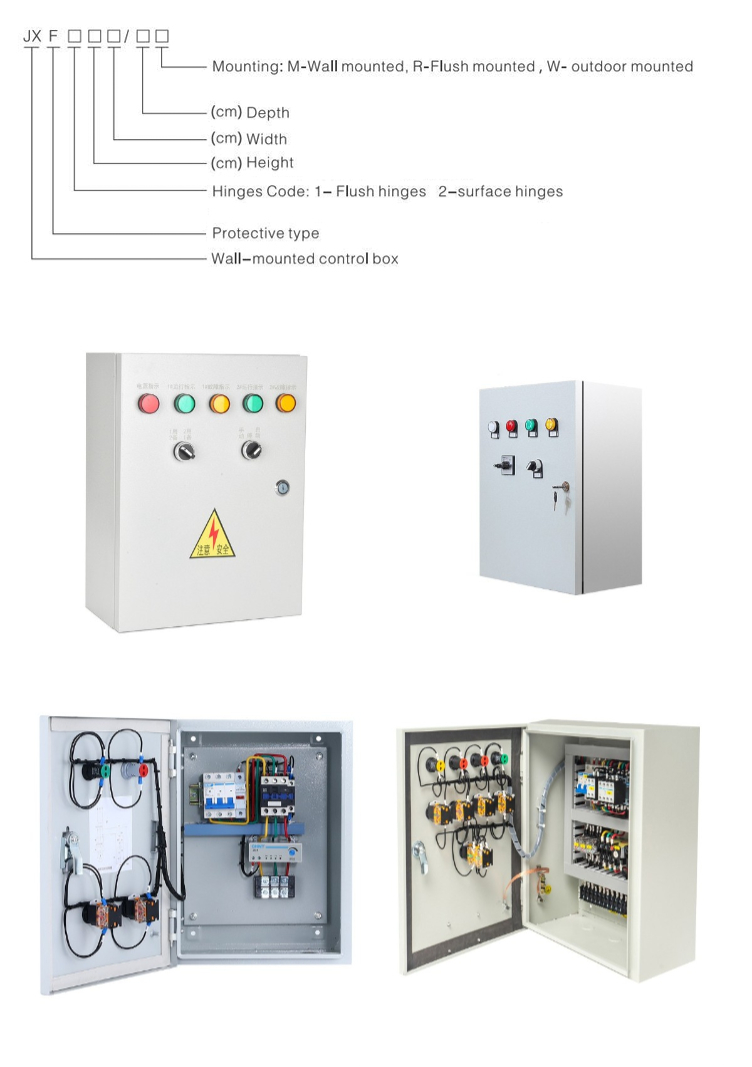

JXF series distribution box is suited for operating in the circuit of AC 50Hz, rated operating voltage 500V and below, in some special cases, the protection grade can reach up to IP55, the top and bottom of the panel will provide knockout holes, if multiple pipes are used for incoming lines, opening plate can be prepared, maxi rated current up to 400A, especially suitable for usage in metering and control box of mining field, hotel, living buildings and etc. Comply with GB7251.12-2013 Low voltage switchgear and
controlgear, IEC60439-2:2011 Low voltage switchgear and controlgear standard.
